11. Demonstrate using NEURON mod files directly in a simulation

Demonstrate using NEURON mod files directly in a simulation We run two simulations, using 2 slightly different mod files, and plot the membrane voltage seen.

Code

from morphforge.stdimports import *
from morphforgecontrib.simulation.channels.exisitingmodfile.core import SimulatorSpecificChannel


def build_simulation(modfilename):
    # Create the morphology for the cell:
    morphDict1 = {'root': {'length': 20, 'diam': 20, 'id':'soma'} }
    m1 = MorphologyTree.fromDictionary(morphDict1)


    # Create the environment:
    env = NEURONEnvironment()

    # Create the simulation:
    sim = env.Simulation()
    cell = sim.create_cell(morphology=m1)


    modChls = env.Channel(SimulatorSpecificChannel, modfilename=modfilename)

    # Apply the mechanisms to the cells
    cell.apply_channel( modChls)

    sim.record(cell, what=StandardTags.Voltage, name="SomaVoltage", cell_location = cell.soma, description='Membrane Voltage')
    sim.create_currentclamp(name="Stim1", amp=qty("200:pA"), dur=qty("100:ms"), delay=qty("100:ms"), cell_location=cell.soma)

    results = sim.run()
    return results



mod3aFilename = Join(LocMgr.get_test_mods_path(), "exampleChannels3a.mod")
results3a = build_simulation(mod3aFilename)

mod3bFilename = Join(LocMgr.get_test_mods_path(), "exampleChannels3b.mod")
results3b = build_simulation(mod3bFilename)

TagViewer([results3a, results3b], timerange=(95, 200)*units.ms)

try:
    import os
    print 'Differences between the two mod files:'
    os.system("diff %s %s"%(mod3aFilename, mod3bFilename))
except:
    print "<Can't run 'diff', so can't show differences!>"

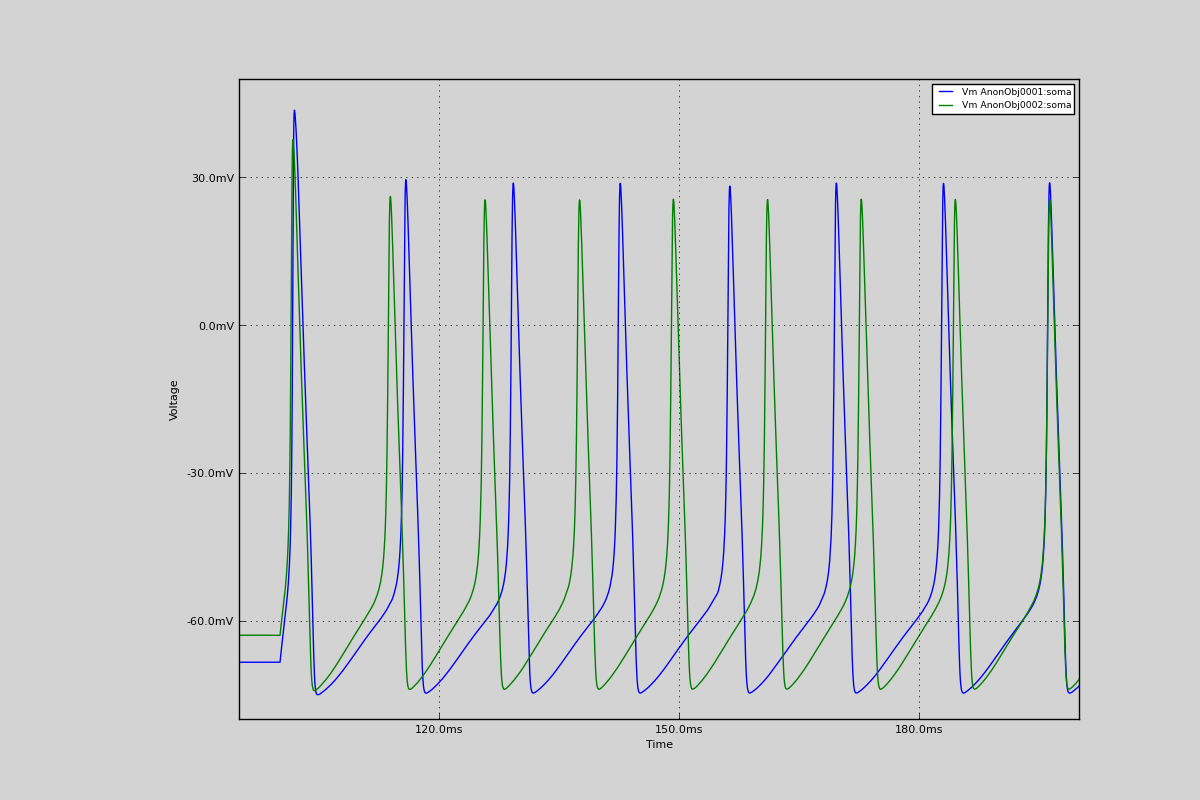

Figures

../_images/singlecell_simulation050_out1.png

Download Figure

Output

    No handlers could be found for logger "neurounits"
2013-10-19 15:40:25,433 - morphforge.core.logmgr - INFO - Logger Started OK
2013-10-19 15:40:25,433 - DISABLEDLOGGING - INFO - _run_spawn() [Pickling Sim]
No handlers could be found for logger "neurounits"
2013-10-19 15:40:26,946 - morphforge.core.logmgr - INFO - Logger Started OK
2013-10-19 15:40:26,946 - DISABLEDLOGGING - INFO - Ensuring Modfile is built
NEURON -- Release 7.1 (359:7f113b76a94b) 2009-10-26
Duke, Yale, and the BlueBrain Project -- Copyright 1984-2008
See http://www.neuron.yale.edu/credits.html

Openning ScriptFlags
/auto/homes/mh735/hw/NeuroUnits/ext_deps
Loading StdLib file: /auto/homes/mh735/hw/NeuroUnits/src/neurounits/../stdlib/stdlib.eqn
Loading Bundle from: /local/scratch/mh735/tmp/morphforge/tmp/simulationresults/23/233504ddb6db04ab96d596034ac6fd64.bundle (11k) : 0.779 seconds
loading membrane mechanisms from /local/scratch/mh735/tmp/morphforge/tmp/modout/mod_b9e50529a8d1f686ed3955884ae081fa.so
    1
    1
    0.01
    0
    1
    50000
    1
Running Simulation
Time for Extracting Data: (1 records) 0.000553846359253
Running simulation : 0.073 seconds
Post-processing : 0.003 seconds
Entire load-run-save time : 0.855 seconds
Suceeded
No handlers could be found for logger "neurounits"
2013-10-19 15:40:28,581 - morphforge.core.logmgr - INFO - Logger Started OK
2013-10-19 15:40:28,581 - DISABLEDLOGGING - INFO - Ensuring Modfile is built
NEURON -- Release 7.1 (359:7f113b76a94b) 2009-10-26
Duke, Yale, and the BlueBrain Project -- Copyright 1984-2008
See http://www.neuron.yale.edu/credits.html

Openning ScriptFlags
/auto/homes/mh735/hw/NeuroUnits/ext_deps
Loading StdLib file: /auto/homes/mh735/hw/NeuroUnits/src/neurounits/../stdlib/stdlib.eqn
Loading Bundle from: /local/scratch/mh735/tmp/morphforge/tmp/simulationresults/aa/aad7f039ef362cda20e37012363d1de9.bundle (11k) : 0.765 seconds
loading membrane mechanisms from /local/scratch/mh735/tmp/morphforge/tmp/modout/mod_5e54856fc3939091ebcff35b32cc9ab3.so
    1
    1
    0.01
    0
    1
    50000
    1
Running Simulation
Time for Extracting Data: (1 records) 0.000562906265259
Running simulation : 0.073 seconds
Post-processing : 0.003 seconds
Entire load-run-save time : 0.841 seconds
Suceeded
15c15
<         SUFFIX exampleChannels3a
---
>         SUFFIX exampleChannels3b
28c28
<         el = -64.3 (mV)
---
>         el = -44.3 (mV)
Openning ScriptFlags
/auto/homes/mh735/hw/NeuroUnits/ext_deps
Loading StdLib file: /auto/homes/mh735/hw/NeuroUnits/src/neurounits/../stdlib/stdlib.eqn
PlotMnager:Saving  _output/figures/singlecell_simulation050/{png,svg}/fig000_Autosave_figure_1.{png,svg}
Differences between the two mod files:
