Investigating the rheobase of a neuron with a parameter sweep
WARNING: The automatic naming and linkage between grpah colors is currently under a refactor; what is done in this script is not representing the best possible solution, or even something that will reliably work in the future!
The aim of this script is just to show that it is possible to run multiple simulations from a single script!
Code
from morphforge.stdimports import *
from morphforgecontrib.simulation.channels.hh_style.core.mmleak import StdChlLeak
from morphforgecontrib.simulation.channels.hh_style.core.mmalphabeta import StdChlAlphaBeta
@cached_functor
def get_Na_Channels(env):
na_state_vars = {"m":
{"alpha": [13.01,0,4,-1.01,-12.56], "beta": [5.73,0,1,9.01,9.69] },
"h":
{"alpha": [0.06,0,0,30.88,26], "beta": [3.06,0,1,-7.09,-10.21]}
}
return env.Channel(
StdChlAlphaBeta,
name="NaChl", ion="na",
equation="m*m*m*h",
conductance=qty("210:nS") / qty("400:um2"),
reversalpotential=qty("50.0:mV"),
statevars=na_state_vars,
)
@cached_functor
def get_Ks_Channels(env):
kf_state_vars = {"ks": {"alpha": [0.2,0,1,-6.96,-7.74 ], "beta": [0.05,0,2,-18.07,6.1 ] } }
return env.Channel(
StdChlAlphaBeta,
name="KsChl", ion="ks",
equation="ks*ks*ks*ks",
conductance=qty("3:nS") / qty("400:um2"),
reversalpotential=qty("-80.0:mV"),
statevars=kf_state_vars,
)
@cached_functor
def get_Kf_Channels(env):
kf_state_vars = {"kf": {"alpha": [ 3.1,0,1,-31.5,-9.3], "beta": [0.44,0,1,4.98,16.19 ] } }
return env.Channel(
StdChlAlphaBeta,
name="KfChl", ion="kf",
equation="kf*kf*kf*kf",
conductance=qty("0.5:nS") / qty("400:um2") ,
reversalpotential=qty("-80.0:mV"),
statevars=kf_state_vars,
)
@cached_functor
def get_Lk_Channels(env):
lk_chl = env.Channel(
StdChlLeak,
name="LkChl",
conductance=qty("3.6765:nS") / qty("400:um2"),
reversalpotential=qty("-51:mV"),
)
return lk_chl
def simulate(current_inj_level):
# Create the environment:
env = NEURONEnvironment()
# Create the simulation:
sim = env.Simulation(name="AA")
# Create a cell:
morphDict1 = {'root': {'length': 20, 'diam': 20, 'id':'soma'} }
morph = MorphologyTree.fromDictionary(morphDict1)
cell = sim.create_cell(name="Cell1", morphology=morph)
lk_chl = get_Lk_Channels(env)
na_chl = get_Na_Channels(env)
potFastChannels = get_Kf_Channels(env)
potSlowChannels = get_Ks_Channels(env)
cell.apply_channel( lk_chl)
cell.apply_channel( na_chl)
cell.apply_channel( potFastChannels)
cell.apply_channel( potSlowChannels)
cell.set_passive( PassiveProperty.SpecificCapacitance, qty('2.0:uF/cm2'))
# Create the stimulus and record the injected current:
cc = sim.create_currentclamp(amp=current_inj_level, dur=qty("100:ms"), delay=qty("100:ms"), cell_location=cell.soma)
sim.record(cc, what=StandardTags.Current)
# Define what to record:
sim.record(cell, what=StandardTags.Voltage, cell_location = cell.soma)
# run the simulation
results = sim.run()
return results
# Display the results:
results = [simulate(current_inj_level='%d:pA' % i) for i in [50,100,150,200, 250, 300] ]
TagViewer(results, timerange=(95, 200)*units.ms, show=True)

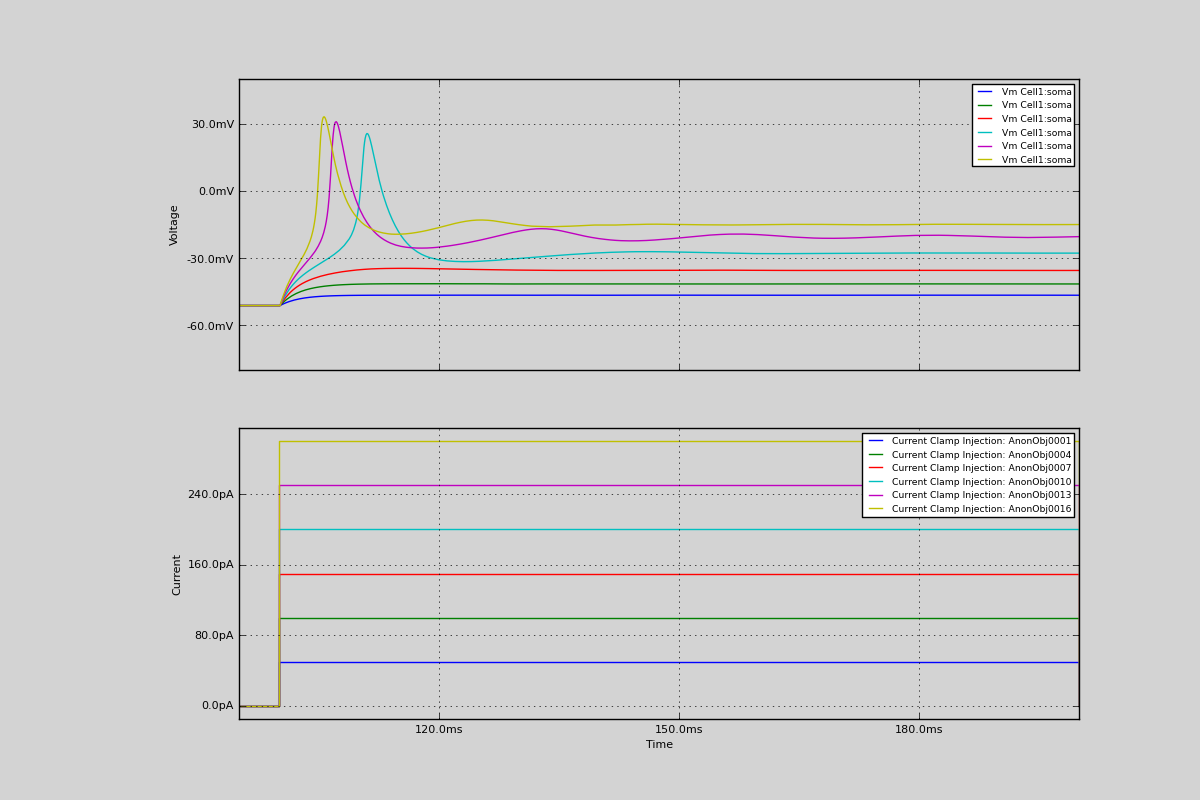

Figures
Download Figure
Output
