Overview

The simulation layer provides an object model for building simulations of multicom partmental neurons and networks entirely within Python. The object-model in the simulator layer is designed to be both flexible and allow complex simulations to be written concisely. A script to run a simulation normally performs the following steps:

1. Choose an Environment & instantiate a Simulation
2. Define types of Channel and Synapses
3. Populate the Simulation with Cells
4. Specify the biophysics of the Cells, (e. g. applying Channels, setting passive properties)
5. Connect the Cells with Synapses
6. Specify experimental stimuli ( e. g. CurrentClamp) )
7. Define which values should be recorded during the simulation
8. Call Simulation.run(), which runs the simulation and returns a SimulationResult object
9. Retrieve the recorded values from the SimulationResult for plotting or analysis

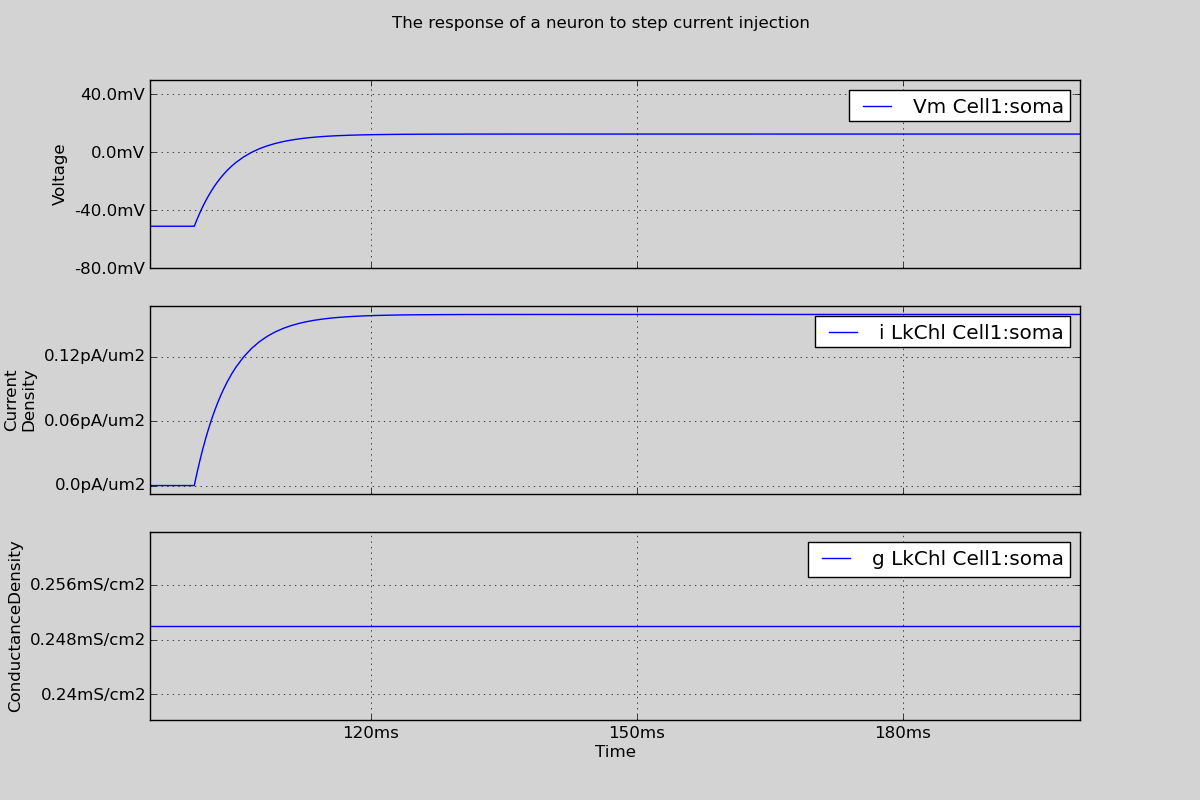

A simple example script is given below that simulates a single neuron with passive channels in response to a step current injection. No external file dependencies are needed, and running the code will cause the figure shown below to be displayed on the screen. The objects involved in these steps are described in more detail below.

from morphforge.stdimports import *
from morphforgecontrib.stdimports import StdChlLeak


# Create the morphology for the cell:
morphDict1 = {'root': {'length': 20, 'diam': 20, 'id':'soma'} }
m1 = MorphologyTree.fromDictionary(morphDict1)

# Create the environment:
env = NEURONEnvironment()

# Create the simulation:
sim = env.Simulation()


# Create a cell:
cell = sim.create_cell(name="Cell1", morphology=m1)


# Apply the mechanisms to the cells
lk_chl = env.Channel(StdChlLeak,
                         name="LkChl",
                         conductance=qty("0.25:mS/cm2"),
                         reversalpotential=qty("-51:mV"),
                       )

cell.apply_channel( lk_chl)
cell.set_passive( PassiveProperty.SpecificCapacitance, qty('1.0:uF/cm2'))



# Create the stimulus and record the injected current:
cc = sim.create_currentclamp(name="Stim1", amp=qty("200:pA"), dur=qty("100:ms"), delay=qty("100:ms"), cell_location=cell.soma)


# Define what to record:
sim.record(cell, what=StandardTags.Voltage, name="SomaVoltage", cell_location = cell.soma)
sim.recordall(lk_chl, cell_location=cell.soma)


# run the simulation
results = sim.run()

# Create an output .pdf
SimulationMRedoc.build( sim ).to_pdf(__file__ + '.pdf')


# Display the results:
TagViewer([results], figtitle="The response of a neuron to step current injection", timerange=(95, 200)*units.ms, show=True)

Environments & Simulations

Environment and Simulation object are central objects in building simulations, but in most cases, they should be simple to use. Briefly Environment objects are factories for producing objects in a simulation for particular backends. This allows a clear separation between abstract concepts, such as Cell and Channel, and the particular NEURON implementation code (e.g. NEURONCell and NEURONChannel). Simulation objects can be created from Environment objects, and encapsulate an entire simulation. This allows multiple simulations to be created within a single script unambiguously, for example to run parameter-sweeps ( e.g. Example 8. Hodgkin-Huxley ‘52 neuron simulation ), or to investigate how stochastic variation in parameters affects the results of simulations.

Cells

Cell objects in morphforge represent neurons. A Cell object has an associated Morphology, and also contains information about the channels and associated parameters applied to that neuron, as well as information about segmentation of the morphology for better spatial accuracy during simulation (see Segmentation).

Channels

Several specialist file formats already exist for defining membrane channel and synaptic dynamics and parameters in simulators, for example MODL, NeuroML, NineML, or neurounit, and we would also like to be able to define channels and synapses in code directly. Rather than choose a single format for specifying primitive dynamics, morphforge uses Python’s dynamic typing to support a flexible model for membrane channels and synapses. We begin by discussing channel models. Morphforge is agnostic about the underlying format of channel models. We assume that an abstract channel can have a series of parameters, that can change in different areas of the membrane, and there is a set of default values for these parameters. To integrate with the morphforge framework, Channel objects are expected to provide a particular interface, some methods of which are general and some of which are simulator-backend specific. All Channel objects must implement the methods get_variables() & get_defaults() which return a list of parameter names for that Channel, (for example: [’g_bar’,’erev’]) and their default values respectively. These are used by the channel-distribution infrastructure in morphforge when calculating the parameter values which should be applied to each compartment of a Cell. Additionally, when the NEURON-backend is used, Channel objects must also implement the methods create_modfile() and build_hoc_section(), which build the MODL code and insert the relevant code into the HOC file.

As with the simulation objects, this is achieved by inheritance. For example, NeuroMLChl represents NeuroML channel loaded from an XML file, and is subclassed to produce the NEURON- specific NEURONNeuroMLChl. NeuroMLChl, implements the methods get_variables() and get_defaults(), which return the names of parameters that can be varied over the neuron, (for example g_bar) and their default values which are found by parsing the XML file. NEURONNeuroMLChl implements the methods create_modfile(), which returns a string of MODL code for the NeuroML file (for example generated using an XSLT ) and build_hoc_section(), which returns the relevant HOC statements for inserting the Channel into a Section with a particular set of parameter values.

# Apply more potassium in the dendrites:
cell.apply_channel(k_chl, TargetEverywhere(), ApplyUniform() )
cell.apply_channel(k_chl, TargetRegion(’dendrites’), ApplyUniform(multiply_parameters={’gbar’:2.0}) )

Segmentation

Morphforge uses the name notation as NEURON to refer to Sections and segments. Briefly, a Section represents an unbranched region of membrane, which can be further subdivided into segments to improve accuracy during simulations. Rather than specify the number of each segments per Section directly, Morphforge allow a Segmenter object to be specified for a cell. This object is expected implement method: get_num_segments(self, section), which returns the number of segments that the ‘section’ should have. Two compartmentalisation algorithms are provided: CellSegmenter_MaxCompartmentLength, which specifies the maximum length of any compartment in the morphology, and CellSegmenter_MaxLengthByID which allows the maximum length of compartments to be defined per Section.

Stimuli

Morphforge allows different types of currentclamps and voltage clamps to be used in a simulation. By default, ‘step’ type clamps are created, but more complex stimulations, such as sine-waves and ramps can also be defined and used by specifying the ‘protocol’ argument to the Simulation.create_currentclamp method. Examples of these can be seen in the examples.

Recording

We need to record various values during a simulation, for example voltages and currents. The morphforge object-model agnostic to the underlying formats of particular synapse and channel formats and supports the recording of any values from any Channel, Synapse or other objects through a consistent interface using the method Simulation.record(), as shown in Listing D.9. Internally, record(obj,...) forwards calls to obj.get_recordable(...), which provides a flexible, yet consistent interface to recording what could be specific data from simulation objects (for example the voltage-dependence term of an NMDA synapse).

env = NEURONEnvironment()
sim = env.Simulation()

# Create a passive cell:
cell = CellLibrary.create_cell(sim, StandardModels.SingleCompartmentPassive, area=qty(’1000:um2’), input_resistance=qty(’300:MOhm’))

# Add active channels (using ComponentLibraries):
chl = ChannelLibrary.get_channel( modelsrc = StandardModels.HH52, channeltype="Na", env=sim.environment)
cell.apply_channel(chl)
cc = current_clamp = sim.create_currentclamp(amp=qty(’100:pA’), dur=qty(’100:ms’), delay=qty(’100:ms’), cell_location = cell.soma)

# Record:
sim.record(cell, what=’Voltage’, name=’V’, cell_location=cell.soma)
sim.record(chl, what=’StateVariable’, state=’m’, cell_location=cell.soma)
sim.record(cc, what=’Current’)

A set of standard strings, such as Voltage, Current and StateVariable are defined in morphforge, which are used in the method calls on lines [14-16] in order to specify what to record. The use of strings allows loose coupling across this interface and allows arbitrary variables to be recorded. sim.record() can take a variety of parameters, depending on the particular object being recorded from. In order to provide a clean architecture behind the scenes, another object called Recordable is introduced (Fig. D.5). Following a call to record(obj,...), the method get_recordable() of obj is called which returns a Recordable object. This contains the relevant machinery to record a particular value from obj using a particular simulator-backend. The get_recordable() method must internally determine which type of Recordable object to return, depending on the parameters passed. As a more concrete example, if the NEURON simulator backend is being used and if get_recordable() is called on a NeuroML channel to record the conductance density at a specific neuron location, then a Recordable object is returned that knows the name of the conductance variable in the generated MODL file (see Section D.1.1), and is able to insert suitable statements into the HOC script to record and return this conductance after the simulation.

A Recordable object can have a name (e. g. Listing D.9 line 14), which can be used to access the corresponding Trace object after the simulation has been run (see next sec- tion). A Recordable object can also take a set of additional user-defined tags, which will be attached to the Trace object (see Section D.1.2). The units of the recordings are automatically handled, for example, when the user requests the Trace object corresponding to the record() statement on line 14 of Listing D.9, it will automatically have the units of millivolts.

Synapses

In morphforge, as in NEURON [Carnevale and Hines, 2006], a Synapse is built from a pair of Presynaptic and Postsynaptic objects (Fig. D.2). Presynaptic objects generate events, for example from a list of times or in response to the voltage of a presynaptic neuron crossing a threshold (Fig. D.2). PostSynaptic objects represent synaptic receptors in the postsynaptic neuron, which open and close with particular dynamics and change the membrane conductance. PostSynaptic consume events to produce discrete changes in the receptor state. Using this scheme allows the presynaptic and postsynaptic components of the synapse to be uncoupled; a particular postsynaptic receptor can be modelled and it is simple to change to the source of spike timing. Another advantage of this scheme is that if the model of the postsynaptic receptors are linearly superposable, then it is possible to replace multiple, identical postsynaptic receptors on a single neuron with a single instance which is driven by multiple event sources, which can dramatically reduce the number of equations that need to be solved by the simulator.

synapse_def = """
define_component syn_alpha {
    g’ = -g/{2ms}
    g2’ = -g2/{10ms}
    i = (g-g2) * (v-{0mV})
    gInc = 5pS
    <=> INPUT v: mV METADATA {"mf":{"role":"MEMBRANEVOLTAGE"} }
    <=> OUTPUT i:(mA) METADATA {"mf":{"role":"TRANSMEMBRANECURRENT"} }
    on on_event(){
        g = g + gInc
        g2 = g2 + gInc
        }
}
"""
cell1 = sim.create_cell(...)
cell2 = sim.create_cell(...)
cell3 = sim.create_cell(...)

syn_tmpl = env.PostSynapticMechanismTemplate(NeuroUnitsTemplate, synapse_def)
sim.create_synapse(
    trigger = VoltageThresholdTrigger(cell_location = cell1.soma, v=0*mV),
    post_synaptic = env.PostSynaptic(NeuroUnitSynapse, synapse_def, cell_location=cell2.soma )
)
sim.create_synapse(
    trigger=VoltageThresholdTrigger(cell_location = cell1.soma, v=0*mV),
    post_synaptic = env.PostSynaptic(NeuroUnitSynapse, synapse_def, cell_location=cell3.soma )
)
