13. Using a channel library to reduce duplication
Using a channel library to reduce duplication.
We define functions that produce morphology and channel objects for our simulations. We could stop here, and simply import and use the functions in our simulations, but we go a step further, and register them with “ChannelLibrary” and “MorphologyLibrary”. These are basically glorified dictionaries, that do the lookup for the appropriate functors based on a key from the tuple~(modelsrc, celltype, channeltype). The advantage for doing this is that there is single repository for morphologies and channels.
There is not really anythin clever going on here, and you can run simulations completely ignorantly of these classes, I just included it because it made life much easier for me, when I had to start managing lots of channel definitions.
Code
from morphforge.stdimports import *
from morphforgecontrib.simulation.channels.hh_style.core.mmleak import StdChlLeak
from morphforgecontrib.simulation.channels.hh_style.core.mmalphabeta import StdChlAlphaBeta
# This can be put into a file that is loaded on
# you path somewhere:
# ======================================================
def getSimpleMorphology():
mDict = {'root': { 'length': 17.5, 'diam': 17.5, 'id':'soma', 'region':'soma', } }
return MorphologyTree.fromDictionary(mDict)
def get_sample_lk(env):
lk_chl = env.Channel(
StdChlLeak,
name="LkChl",
conductance=qty("0.3:mS/cm2"),
reversalpotential=qty("-54.3:mV"),
)
return lk_chl
def get_sample_na(env):
na_state_vars = { "m": {
"alpha":[-4.00,-0.10,-1.00,40.00,-10.00],
"beta": [4.00, 0.00, 0.00,65.00, 18.00]},
"h": {
"alpha":[0.07,0.00,0.00,65.00,20.00] ,
"beta": [1.00,0.00,1.00,35.00,-10.00]}
}
na_chl = env.Channel(
StdChlAlphaBeta,
name="NaChl", ion="na",
equation="m*m*m*h",
conductance=qty("120:mS/cm2"),
reversalpotential=qty("50:mV"),
statevars=na_state_vars,
)
return na_chl
def get_sample_k(env):
k_state_vars = { "n": { "alpha":[-0.55,-0.01,-1.0,55.0,-10.0],
"beta": [0.125,0,0,65,80]},
}
k_chl = env.Channel(
StdChlAlphaBeta,
name="KChl", ion="k",
equation="n*n*n*n",
conductance=qty("36:mS/cm2"),
reversalpotential=qty("-77:mV"),
statevars=k_state_vars,
)
return k_chl
MorphologyLibrary.register_morphology(modelsrc="Sample", celltype="Cell1", morph_functor=getSimpleMorphology)
ChannelLibrary.register_channel(modelsrc="Sample", celltype="Cell1", channeltype="Na", chl_functor=get_sample_na)
ChannelLibrary.register_channel(modelsrc="Sample", celltype="Cell1", channeltype="K", chl_functor=get_sample_k)
ChannelLibrary.register_channel(modelsrc="Sample", celltype="Cell1", channeltype="Lk", chl_functor=get_sample_lk)
# =============================================================
# Now in our script elsewhere, we can use them as:
modelsrc = "Sample"
celltype="Cell1"
# Create the environment:
env = NEURONEnvironment()
# Create the simulation:
sim = env.Simulation()
# Create a cell:
morphology=MorphologyLibrary.get_morphology(modelsrc=modelsrc, celltype=celltype)
cell = sim.create_cell(morphology=morphology)
# Apply the channels uniformly over the cell
na_chl = ChannelLibrary.get_channel(modelsrc=modelsrc, celltype=celltype, channeltype="Na", env=env)
k_chl = ChannelLibrary.get_channel(modelsrc=modelsrc, celltype=celltype, channeltype="K", env=env)
lk_chl = ChannelLibrary.get_channel(modelsrc=modelsrc, celltype=celltype, channeltype="Lk", env=env)
cell.apply_channel( na_chl)
cell.apply_channel( k_chl )
cell.apply_channel( lk_chl)
cell.set_passive( PassiveProperty.SpecificCapacitance, qty('1.0:uF/cm2'))
# Create the stimulus and record the injected current:
cc = sim.create_currentclamp(name="Stim1", amp=qty("150:pA"), dur=qty("5:ms"), delay=qty("100:ms"), cell_location=cell.soma)
sim.record(cc, what=StandardTags.Current)
sim.record(cell, what=StandardTags.Voltage, cell_location=cell.soma)
# run the simulation
results = sim.run()
# Display the results:

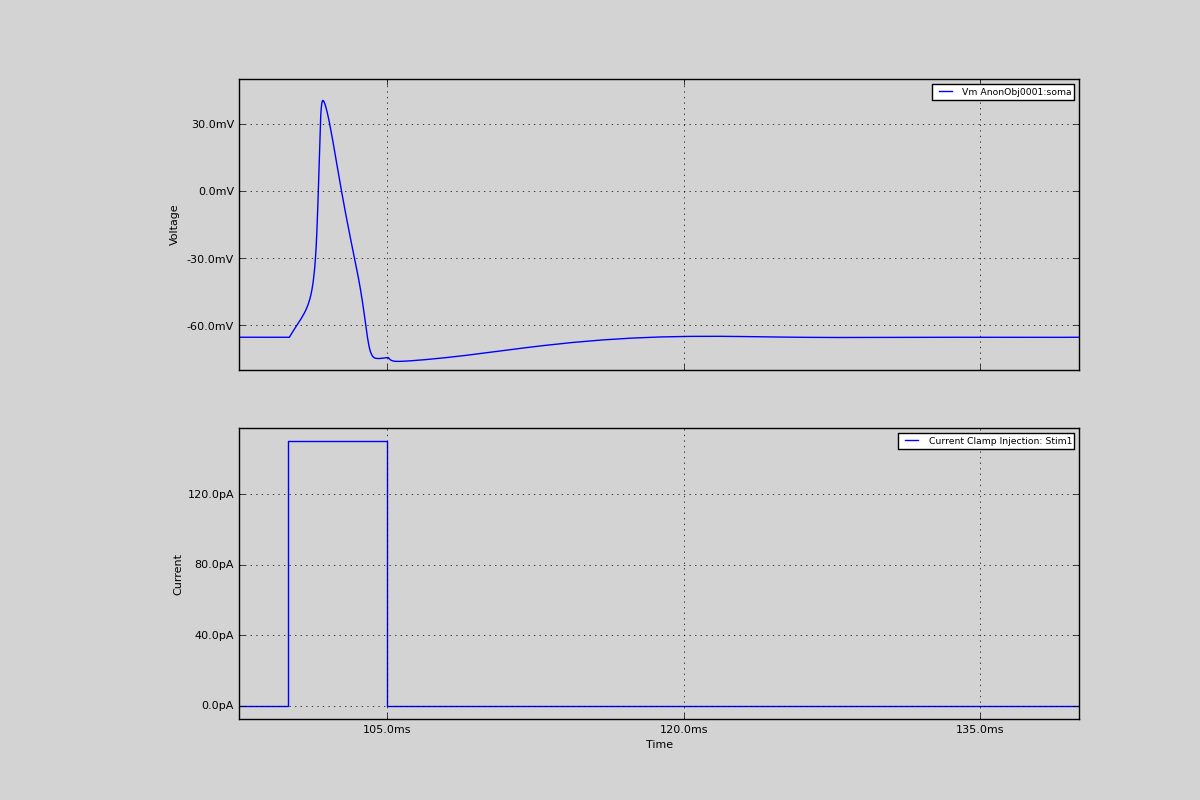

TagViewer([results], timerange=(97.5, 140)*units.ms)
Figures
Download Figure
Output
No handlers could be found for logger "neurounits"
2013-10-19 15:40:36,351 - morphforge.core.logmgr - INFO - Logger Started OK
2013-10-19 15:40:36,351 - DISABLEDLOGGING - INFO - _run_spawn() [Pickling Sim]
No handlers could be found for logger "neurounits"
2013-10-19 15:40:37,934 - morphforge.core.logmgr - INFO - Logger Started OK
2013-10-19 15:40:37,934 - DISABLEDLOGGING - INFO - Ensuring Modfile is built
NEURON -- Release 7.1 (359:7f113b76a94b) 2009-10-26
Duke, Yale, and the BlueBrain Project -- Copyright 1984-2008
See http://www.neuron.yale.edu/credits.html
Openning ScriptFlags
/auto/homes/mh735/hw/NeuroUnits/ext_deps
Loading StdLib file: /auto/homes/mh735/hw/NeuroUnits/src/neurounits/../stdlib/stdlib.eqn
Loading Bundle from: /local/scratch/mh735/tmp/morphforge/tmp/simulationresults/b4/b41741d4d1311e8b1110b97dbab2fb28.bundle (11k) : 0.788 seconds
set(['conductance', 'reversalpotential'])
__dict__ {'mm_neuronNumber': None, 'cachedNeuronSuffix': None, 'reversalpotential': array(-54.3) * mV, '_name': 'LkChl', '_simulation': None, 'conductance': array(3.0) * s**3*A**2/(kg*m**4)}
loading membrane mechanisms from /local/scratch/mh735/tmp/morphforge/tmp/modout/mod_5fb53d86906bb0ff9a3f8f78e06c7a5b.so
loading membrane mechanisms from /local/scratch/mh735/tmp/morphforge/tmp/modout/mod_14a5557d418242e3ab463bb7bc1b7cc3.so
loading membrane mechanisms from /local/scratch/mh735/tmp/morphforge/tmp/modout/mod_5a503145b0c1cde6262b198883e45437.so
1
1
0.01
0
1
50000
1
50000
1
Running Simulation
Time for Extracting Data: (2 records) 0.00104999542236
Running simulation : 0.128 seconds
Post-processing : 0.003 seconds
Entire load-run-save time : 0.919 seconds
Suceeded
Openning ScriptFlags
/auto/homes/mh735/hw/NeuroUnits/ext_deps
Loading StdLib file: /auto/homes/mh735/hw/NeuroUnits/src/neurounits/../stdlib/stdlib.eqn
PlotMnager:Saving _output/figures/singlecell_simulation065/{png,svg}/fig000_Autosave_figure_1.{png,svg}
